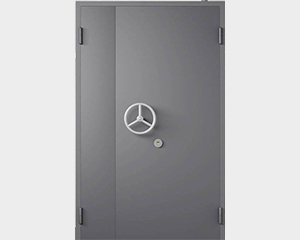

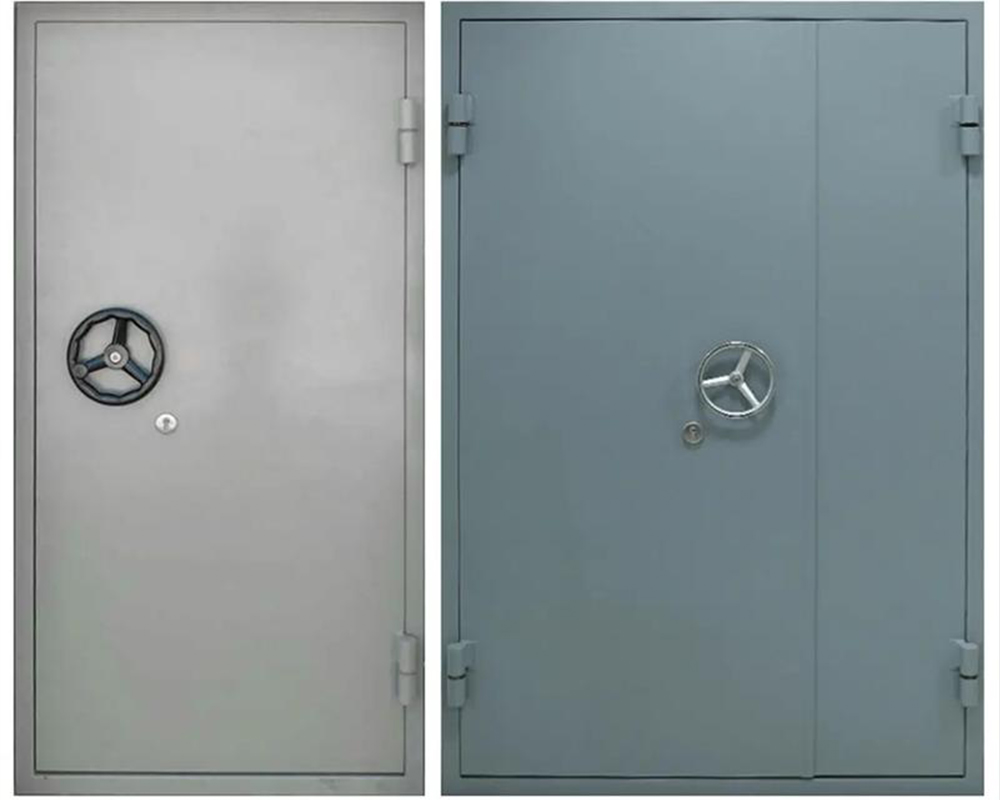

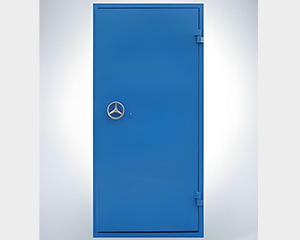

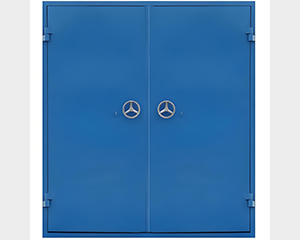

Blast-Proof Door
|
Technical Specifications |
| Open Style |
Open Outward | Open Inward | Sliding |
|
Profile |
Steel |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated | Frosted |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Blast Resistance: Withstands 300kPa overpressure with 100ms impulse duration.
- Multi-Layer Armor: 8mm steel outer plate + 25mm ballistic fiber composite + 6mm anti-spall liner.
- Dynamic Sealing: Pneumatic perimeter seal activates in 0.3s post-blast to contain hazardous particulates.
- Hinge System: 360° rotating blast hinges absorb 250kN·m torque.
- Locking Mechanism: 18-point interlocking system.
- Fire Integration: Simultaneous 120-minute fire rating with blast protection capability.
- Pressure Relief: Controlled failure zones redirect 70% blast energy outward.
- Emergency Egress: Dual-action panic bar with 250kg release force.
- Acoustic Insulation: 68dB sound reduction with vibration dampening layers.
- Custom Sizing: Manufacturable up to 4000x3000mm dimensions with armored frame reinforcement.
- Cyclic Testing: Endures 100+ full pressure cycles without performance degradation.
|
