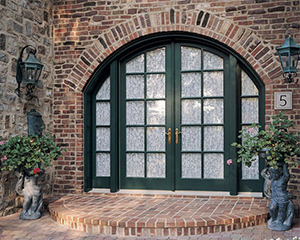

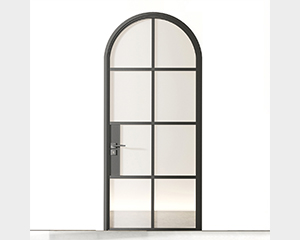

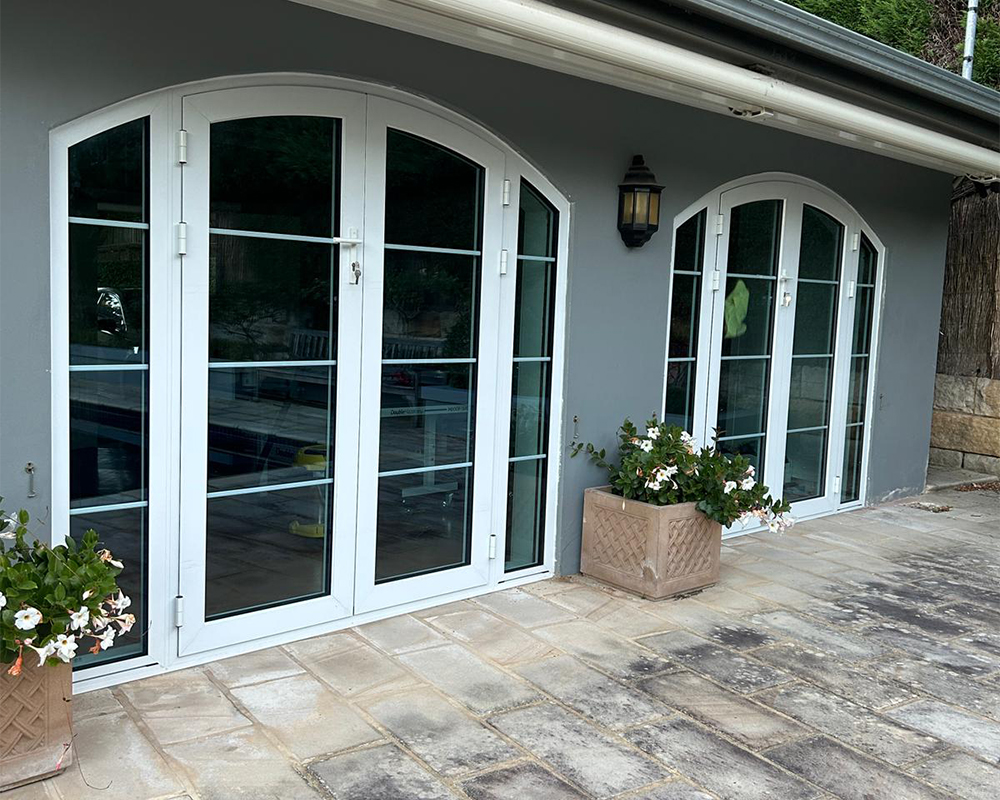

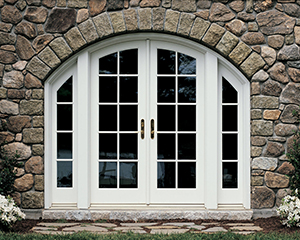

Arch Door
|
Technical Specifications |
| Open Style |
Open Outward | Open Inward |
|
Profile |
Aluminum | Aluminum-Clad Wood | Steel |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated | Frosted |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Structural Integrity: Thicker aluminum alloy frame with arch geometry maintains high wind load resistance.
- Thermal Break Design: Polyamide thermal barrier achieves U-value 0.85 W/(m²·K) with dual EPDM weather seals.
- Custom Radii: Arch configurations (R800-R5000mm) with BIM-compatible parametric modeling capability.
- Acoustic Performance: 45mm thick door panel achieves STC 38 rating with optional soundproof core upgrade.
- Security System: 6-point multi-locking mechanism.
- Fire Safety: 90-minute fire rating when equipped with ceramic fiber insulation core.
- Material Hybrid (Optional): Exterior 3mm aluminum cladding + interior oak veneer.
- Hardware: Modern security standards.
- Corrosion Defense: High grade powder coating is good for anti-corrosion and weather resistance.
|
