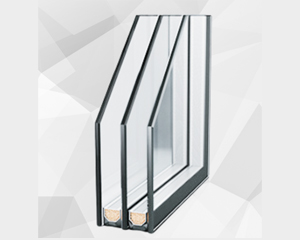

Triple Glazing Units
|
Technical Specifications |
| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |
| Layers |
Double or Triple |
| Filling |
Air or Argon |
| Size |
Custome Made |
| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features
- Advanced Thermal Regulation: Triple-layer glazing with argon gas fill and low-e coatings reduces heat transfer by 40% compared to double glazing, maintaining stable indoor temperatures year-round.
- Dynamic Solar Control: Optional PCM (Phase Change Material) integration absorbs excess solar heat during daytime and releases it at night, reducing cooling loads by up to 30% in summer.
- Soundproofing: 35dB noise reduction achieved through asymmetric glass thickness (4mm/6mm/4mm) and acoustic spacer bars, ideal for urban environments.
- Structural Resilience: Aluminum-reinforced warm edge spacers withstand wind loads up to 2400Pa and temperature fluctuations from -50°C to 80°C.
- Custom Configuration: Available in sizes up to 3500mm x 2500mm with cavity options for different climate zones.
- UV Protection: Built-in 99% UV filtering interlayer protects interior furnishings from sun damage.
|
